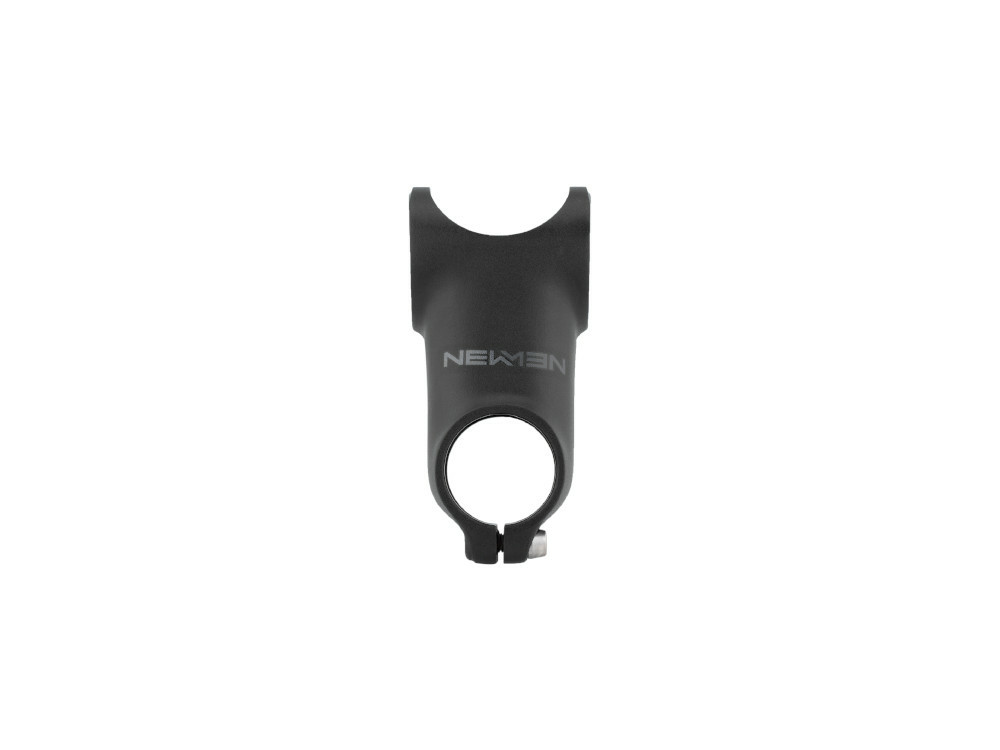

PIPA NEWMEN EVOLUTION SL 318.2 -17 GRADE 70mm

Descriere

PIPA NEWMEN EVOLUTION SL 318.2 -17 GRADE 70mm

After more than 15 years without any real innovation in the field of stem design and production, NEWMEN has succeeded in setting a new benchmark in stems with fresh ideas and innovative production technology. The NEWMEN EVOLUTION SL 318.2 is the lightest 3D forged series oversize stem in the world. In addition to its low weight and the no-frills shape, it also impresses with its rigidity, stability and durability. Even the assembly of the handlebars is very easy thanks to the small assembly aid supplied. The stem screws may be tightened to a maximum of 6 Nm. This is a maximum specification! Please also read the instructions for your fork and handlebar before assembly. If a lower torque is specified, this must be observed. Please use a torque wrench. Note: Not all racing handlebars are compatible with the NEWMEN EVOLUTION SL 318.2 stem! Technical specifications: Area of ​​use: MTB, road bike, triathlon Material: Aluminum 7050 Screws: titanium Handlebar mount: Ø 31.8 mm Steerer tube diameter: 1 1/8" (28.6 mm) Lengths: 50, 60, 70, 80, 90 or 100 mm Angle: -17 (do not mount in ascending order) Clamp height fork shaft: 43 mm (minimum insertion depth 41 mm) Handlebar clamping width: 48 mm Tool holder: 4 mm Allen key Max. torque: 6 Nm (handlebar clamp and steerer tube) Finish: Shotpeen Anodized Color: Black Weight according to manufacturer: n/a Weight weighed: 84.3g (70mm)
