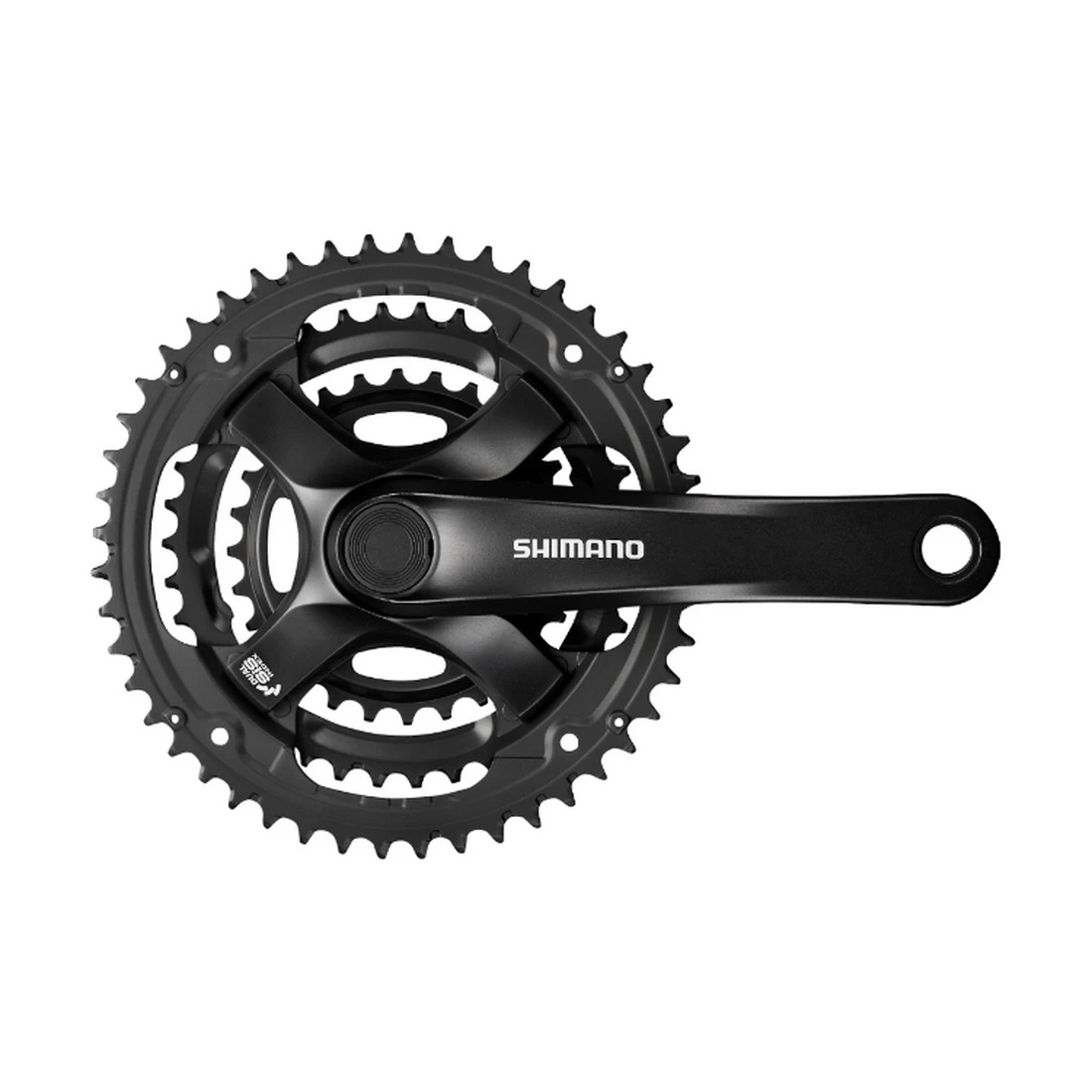

Angrenaj pedalier SHIMANO Tourney FC-TY501 Brat 175 mm 48x38x28T 6/7/8 Viteze

Descriere

Angrenaj pedalier SHIMANO Tourney FC-TY501 Brat 175 mm 48x38x28T 6/7/8 Viteze

Compatibil cu sistemele de transmisie 3x8, 3x7 și 3x6, angrenajul SHIMANO TOURNEY TY oferă o schimbare fiabilă și precisă DUAL SIS.

Caracteristici:

• Seria: Tourney
• Color: Black
• Remarks: * Bottom bracket spec. for chain line 50 mm
• Rear speeds: 8/7/6
• Compatible chain: HG 8/7/6-speed
• Chain line (mm) : 47.5/47.5 + t/50
• O.L.D.|Thru (mm) : 142
• O.L.D.|QR/Nut (mm) : 135
• P.C.D. (mm) : Riveted
• Spider/gear arms: 4
• Chainring combination: 48-38-28T
• Q-factor (mm) : 185.5
• Crank arm length (mm)|175: ✔
• Optional chain guard|Without chain/bash guard: ✔
• Compatible bottom bracket type|Square: ✔
• Recommended bottom bracket|Threaded (normal) : BB-UN101, BB-UN300
• Recommended bottom bracket|Threaded (chain case) : BB-UN101-K, BB-UN300K
• Axle length of BB-UN/ES (mm)|Threaded (normal) : D-NL, *D-EL
• Axle length of BB-UN/ES (mm)|Threaded (chain case) : D-NL K
• Threaded bottom bracket shell width (mm)|68: ✔
• Threaded bottom bracket shell width (mm)|73: ✔
• Chain case compatible: ✔
