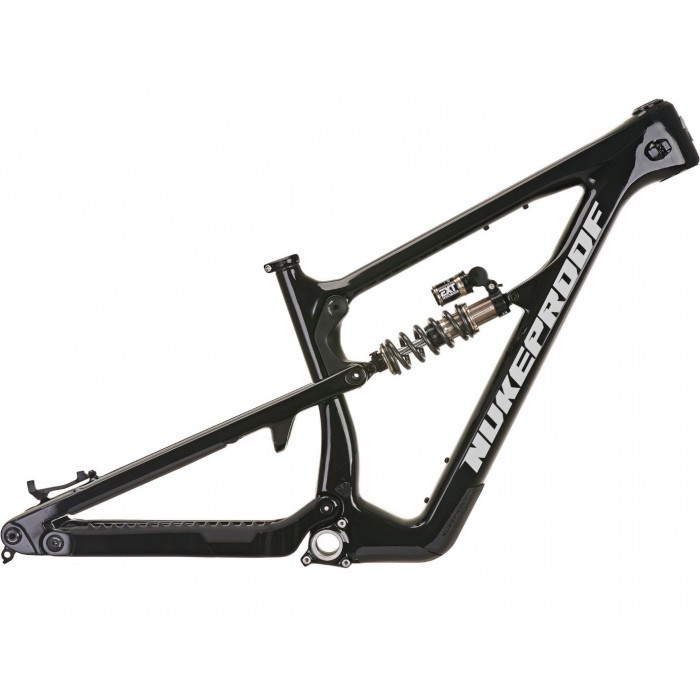

Cadru Bicicleta Nukeproof Mega 297 Carbon (EXT Shock) Black

16.342,00 Lei (TVA inclus)
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Livrare gratuită!
Cod produs - SKU 855623-


Cadru Bicicleta Nukeproof Mega 297 Carbon (EXT Shock) Black


Nukeproof Mega 297 Carbon Frame (EXT Shock)

The Mega 297 Carbon EXT features an ultra-strong monocoque carbon fibre construction that is equipped with a durable and high-performance EXT STORIA LOK V3 Coil rear shock. This mountain bike (MTB) frame offers the best balance of stiffness, strength and low weight performance for intense trail riding. The ideal frame for enduro racing, epic all-mountain adventures and bike park sessions, this race-ready frame features modern enduro geometry with internally piped cable routing, making it ideal for handling the demands of enduro racing while also providing a clean, sleek finish.

For over 12 years, Nukeproof's best-selling model; the Mega has been racking up awards on enduro stages and in the press around the world. With four Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing.

Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of Nukeproof's riders and customers alike. As a result, the Mega Carbon V4 frame is available for 27.5", 29" or new Mixed (Front 29"/Rear 27.5" wheel sizes) wheel set ups, with each frame design tailored around each wheel size.

Full Suspension Carbon Fibre MTB Frame

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms helps reduce the unsprung weight on the rear of the bike, improving suspension performance. All forged parts are made from 6061-T6 aluminium.


The STORIA LOK V3 offers the revolutionary LOK Technology that allows a complete compression separate lock-out system, now totally renewed with a new design, a more progressive opening, and a totally silent working.

In order to allow every rider to use a softer spring rate and increase bike traction and handling, EXT engineers have imported from ARMA the hydralic bottom out system named HBC (Hydraulic Bottom-out Control), capable to develop more than 50% of hydraulic force only on the last part of the stroke, allowing riders to avoid any kind of bottom-out issues.

This technology allows the use of thinner bottom-out bumpers, increasing the amount of useful travel.

The STORIA V3 is also designed to serve riders who want maximum performance of a pedal-platform equipped shock, with a great support on the last millimeters of bike rear travel, with the great performance of a coilover shock.

Nukeproof's Ultimate Enduro Race Bike

After winning four Enduro World Series Titles in three years the V4 design is an evolution of Nukeproof's ultimate enduro bike. At the heart of the frame is the brand's revised suspension Kinematic, designed to be more subtle off the top, whilst remaining progressive and predictable. Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:

  • All new UD Carbon chassis
  • Improved suspension kinematics
  • Tube-In-Tube design for easy cable installation
  • All new geometry
  • Optimised sizing/fit - Small to Large
  • Room for a 750ml water bottle inside the main front triangle

The updated Mega frame geometry features dynamic saddle offset which is designed to optimise seated rider weight distribution on each frame size. This is achieved through a seat angle that is bespoke to each frame size. In addition, the actual seat tube is designed to be shorter overall with a bigger maximum insert depth so as to allow a longer dropper post if required.


  • Material:&Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre
  • Use:&Enduro, All Mountain
  • Shock:&EXT STORIA LOK V3 Coil 230X62.5
  • Fork Travel:&170mm
  • Axle to Crown:&582mm
  • Fork Offset:&42mm
  • Rear Travel:&165mm
  • Wheels Size:&Front 29"/Rear 27.5'
  • Max Tyre Size:&2.6'
  • Recommended Shock Sag (Measured seated):&30%
  • Shock Size:&230x62.5mm
  • Shock Hardware F:&25x8mm
  • Shock Hardware R:&30x8mm
  • Headtube:&44-56mm Tapered Semi-Integrated
  • Headset:&ZS44-28.6 - T2 / ZS56/40 - B8
  • Bearings Required:&4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
  • Seatpost:&31.6mm (Internal Routing for Dropper Seatpost)
  • Seat Clamp:&36.4mm
  • Bottom Bracket:&Threaded 73mm BSA
  • Rear Hub:&Boost 148x12mm
  • Rear Axle:&SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
  • Chain Guide:&ISCG05
  • Brake Mount:&180mm Direct Post
  • Protection:&3D Contoured Rubber Frame Protection for DT/SS/CS
  • Cable Routing:&Internally piped cable routing
  • ISCG05 mount
  • Enduro bearings
  • Weight:&3.82Kgs/8.4lbs (Medium option)

EXT STORIA LOK V3 Rear Shock Benefits:

  • Custom tuned for Mega/Giga
  • 4 way adjustable (LSC-HSC-LSR-Lok proprietary system
  • High flow ? 29 mm main piston
  • ? 24 mm valve piston
  • ? 14 mm shaft
  • New Lok Technology ?╟⌠ Progressive opening ?╟⌠ Silent working
  • Engineered rebound circuit to separate bump and rebound oil flow
  • Ultra low-friction coating
  • Factory tuned HBC technology
  • Very low reservoir pressure for maximum sensitivity (55 PSI)
  • No cavitation
  • Very low hysteresis for high dynamic response
  • High turbulent flow for very low temperature depending
  • Low friction Energize seal
  • Thinner bottom-out bumper
  • New rebound knob for easy spring swap


  • Colour:&White, Black
  • Frame Size:&XL, M, L, S, XXL
  • Gender:&Unisex
  • Material:&Carbon
